Oil-in-water drop glass chip
There are standard and customized glass chips for oil-in-water droplets. By controlling the flow velocity of oil phase and water phase in the chip, droplets of different particle sizes are formed, and
There are standard and customized glass chips for oil-in-water droplets. By controlling the flow velocity of oil phase and water phase in the chip, droplets of different particle sizes are formed, and the size distribution of the droplets is relatively uniform. Can be based on customer requirements, accept the formulation of droplet chip, the following is the standard droplet chip produced droplet diagram.

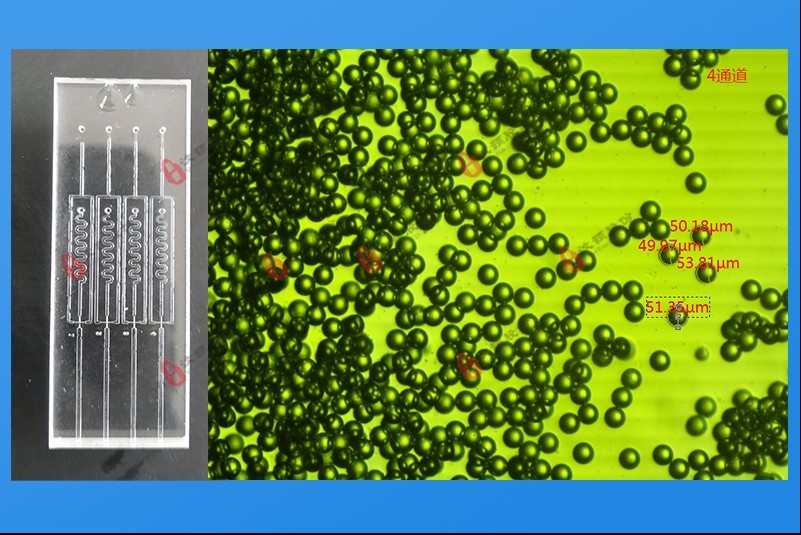

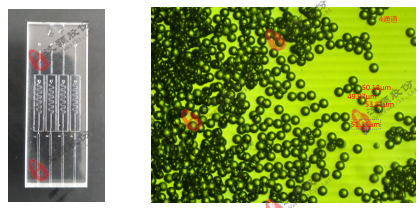

(1) Droplet parameters: water phase 1mL/H, oil phase 3mL/H; Droplet size 50 m.

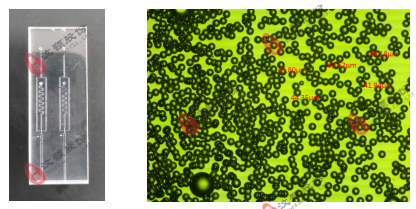

(2) Droplet parameters: water phase 1mL/H, oil phase 3mL/H; Droplet size 45 m.

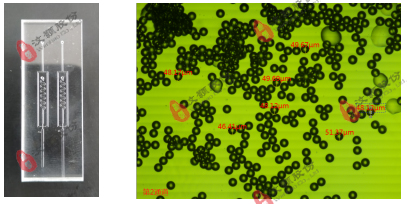

(3) Droplet parameters: water phase 1mL/H, oil phase 3mL/H; Droplet size 50 m.
